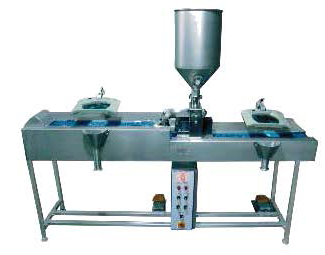

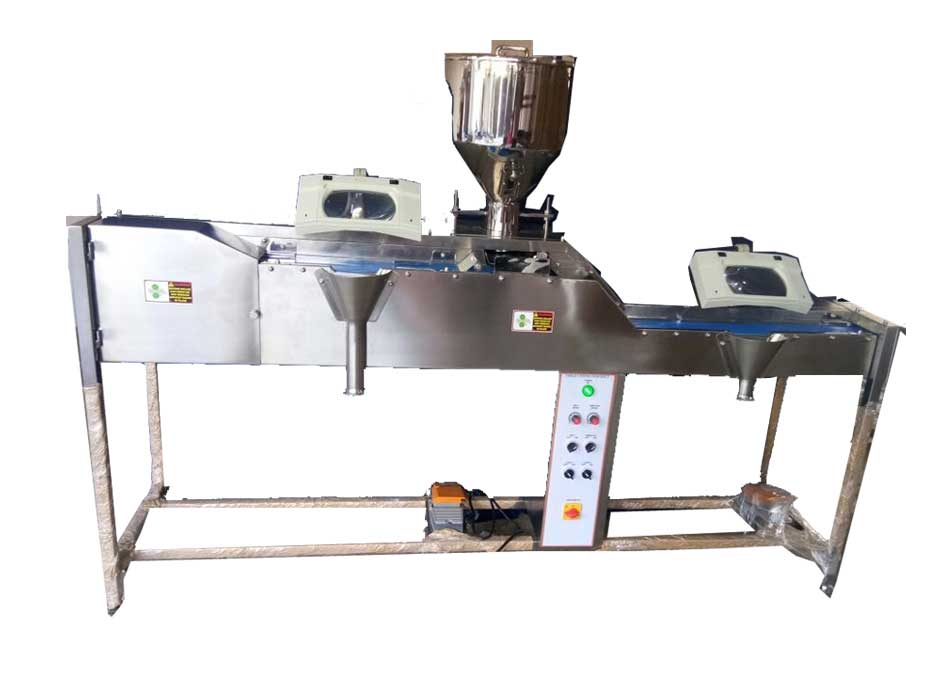

Semi Automatic Tablet / Powder Inspection -Sorting System



Semi Automatic Tablet / Powder Inspection -Sorting System



SANNIT is the leading manufacturer, exporter and supplier of Semi-Automatic Tablet Inspection - Storing System .

Tablet Inspection Machine is used for visual Inspection of all size Tablets and manually sorting damaged tablets.

This is two-head inspection machine.
Material : Contact parts Stainless Steel 316 quality & Non contact part Stainless Steel 304 quality.

Technical Specification :
Roller : Main Drive Cast Nylon & Support (S.S. 304)
Belt : Endless Blue Colour (100mm Top Side Width & 100mm Bottom Side Width+2mm Thk.)
Gearbox For Belt: Bonfiglioli Make
Motor : 0.5HP
VFD For Belt : Delta Make 'L' Series 0.5HP
Direction of Conveyor: Inter Mediate Drive
Inspection Lamp : ESD Safe Rectangle Magnifier Lamp 5* Diopter 2CLF Lamp with Flexible ARM & work on 220V AC 50Hz- 2 Nos. Hopper : S.S. 316 Tablet Feeding Hopper- 1 No.
Vibrator : Electromagnetic Vibratory Feeder (VF-70)
Capacity : Upto 50000 Tablets/Hour
